691322110002
Manufacturer:
Wurth Electronics
Mfr.Part #:
691322110002
Datasheet:
Description:

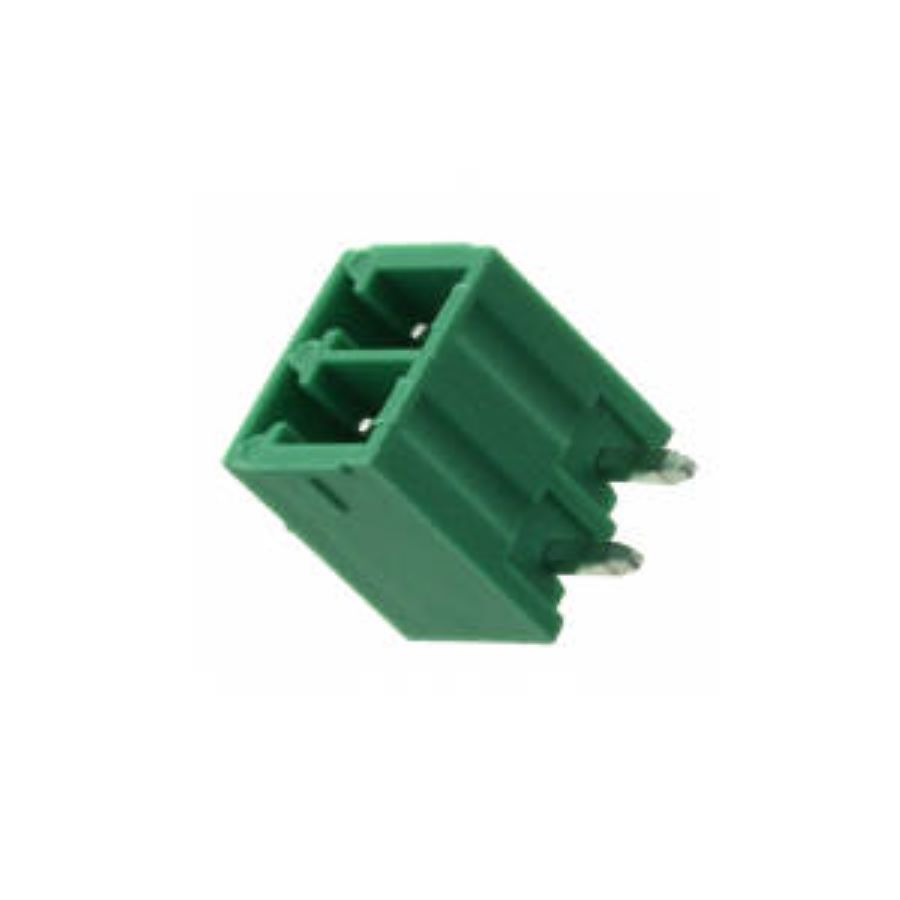

Terminal Blocks Through Hole 2 3.5 mm 10 A 300 V
| Parameter | Value |
|---|---|
| Length | 10.5 mm |
| Width | 8.1 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 9.2 mm |
| Packaging | Box |
| Voltage Rating | 300 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 3.5 mm |
| Voltage | 300 V |
| REACH SVHC | Unknown |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.5 mm |
| Current | 10 A |
| Current Rating | 10 A |
| Orientation | 90° Angle (Right) |
| Color | Green |
| Gender | Male |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Connection Method | Plug |
Stock: 4259
Distributors
pcbx
pcbxUnit Price$0.25042
Ext.Price$0.25042
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25042 | $0.25042 |
| 10 | $0.22213 | $2.22130 |
| 25 | $0.20623 | $5.15575 |
| 50 | $0.19146 | $9.57300 |
| 100 | $0.17175 | $17.17500 |
| 300 | $0.16632 | $49.89600 |
| 500 | $0.16106 | $80.53000 |
| 1000 | $0.15148 | $151.48000 |
